Implement Schedule Week

Hi guys!

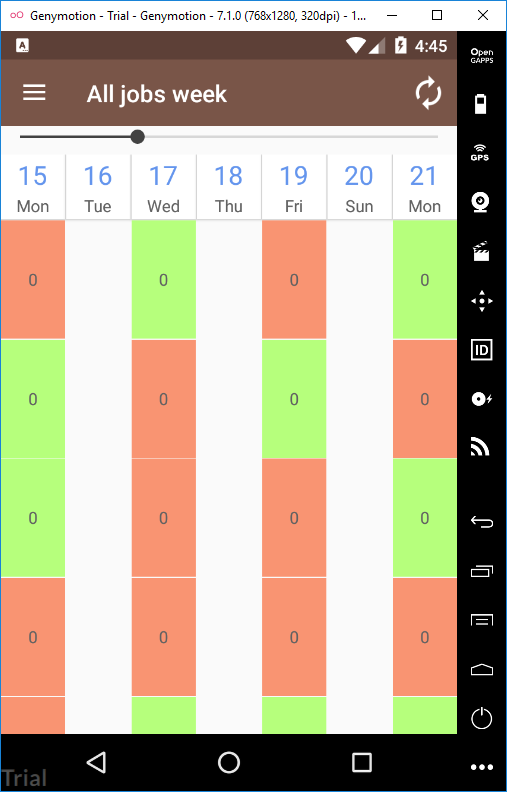

I need to create a Schedule Week View for my application, I've tried many different options and still in a dead end, you could see questions within a week.

Slider just increase RowHeight property.

Video : https://cloud.mail.ru/public/MNUP/ydAmWVXhu

I originally made columns using ListView, then rebuilt all using StackLayout or RepeaterView, now I'm using the Grid.

My problem is: I need to do a grid zoom (increase row height and column width), but with all the above layouts, there are performance issues.
When I used StackLayout, I increased the height of each element through the bindable property. Now that I'm using the Grid, I increase the Height property of each row through the bindable property. But when I do this it's very slow and freeze.

My Realization classes:

• ScheduleWeekView.xaml
• DayInfo.xaml show Day of week and Day of the month
• JobObjectTemplate.xaml this is cell of the grid

My logic: in the code file, I create the lines and associate them with RowHeightProperty, when I get List WeekItems I start filling out the table with elements. If there are more elements, I add lines.
DayInfo contains the day of the month and all Jobs for that day

ScheduleWeekView.xaml

<ContentView.Content>

        <ScrollView
            x:Name="ScrollView"
            BindingContext="{x:Reference This}"
            Orientation="Vertical">

            <Grid
                x:Name="ScheduleGrid"
                ColumnSpacing="1"
                RowSpacing="1">

                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto" />
                </Grid.RowDefinitions>

                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="*" />
                    <ColumnDefinition Width="*" />
                    <ColumnDefinition Width="*" />
                    <ColumnDefinition Width="*" />
                    <ColumnDefinition Width="*" />
                    <ColumnDefinition Width="*" />
                    <ColumnDefinition Width="*" />
                </Grid.ColumnDefinitions>

                <!--  DayInfo  -->
                <week:DayInfoView
                    Grid.Column="0"
                    DayOfMonth="{Binding WeekItems[0].DayOfMonth}"
                    DayOfWeek="Mon" />
                <week:DayInfoView
                    Grid.Column="1"
                    DayOfMonth="{Binding WeekItems[1].DayOfMonth}"
                    DayOfWeek="Tue" />
                <week:DayInfoView
                    Grid.Column="2"
                    DayOfMonth="{Binding WeekItems[2].DayOfMonth}"
                    DayOfWeek="Wed" />
                <week:DayInfoView
                    Grid.Column="3"
                    DayOfMonth="{Binding WeekItems[3].DayOfMonth}"
                    DayOfWeek="Thu" />
                <week:DayInfoView
                    Grid.Column="4"
                    DayOfMonth="{Binding WeekItems[4].DayOfMonth}"
                    DayOfWeek="Fri" />
                <week:DayInfoView
                    Grid.Column="5"
                    DayOfMonth="{Binding WeekItems[5].DayOfMonth}"
                    DayOfWeek="Sun" />
                <week:DayInfoView
                    Grid.Column="6"
                    DayOfMonth="{Binding WeekItems[6].DayOfMonth}"
                    DayOfWeek="Mon" />

                <Grid.GestureRecognizers>
                    <PinchGestureRecognizer PinchUpdated="PinchToZoomContainer_OnPinchUpdated" />
                </Grid.GestureRecognizers>
            </Grid>
        </ScrollView>
    </ContentView.Content>

ScheduleWeekView.xaml.cs

public partial class ScheduleWeekView : ContentView
    {
        #region Consts

        private const double InitializeItemHeight = 50.0;

        private const int DefaultRowCount = 10;

        #endregion


        #region BindableProperties

        private static readonly BindableProperty ColumnWidthProperty =
            BindableProperty.Create(
                "ColumnWidth",
                typeof(GridLength),
                typeof(ScheduleWeekView),
                new GridLength(),
                BindingMode.TwoWay);

        private static readonly BindableProperty RowHeightProperty =
            BindableProperty.Create(
                "RowHeight",
                typeof(double),
                typeof(ScheduleWeekView),
                InitializeItemHeight,
                BindingMode.TwoWay);

        public static readonly BindableProperty WeekItemsProperty = BindableProperty.Create(
            "WeekItems",
            typeof(List<DayInfo>),
            typeof(ScheduleWeekView),
            propertyChanged: (bindable, value, newValue) =>
            {
                var days = (List<DayInfo>) newValue;
                ((ScheduleWeekView)bindable).FillGrid(days);
            });

        public static readonly BindableProperty ItemTappedCommandProperty = BindableProperty.Create(
            "ItemTappedCommand",
            typeof(ICommand),
            typeof(ScheduleWeekView));

        #endregion


        #region Public Fields

        public GridLength ColumnWidth
        {
            get => (GridLength) GetValue(ColumnWidthProperty);
            set => SetValue(ColumnWidthProperty, value);
        }

        public double RowHeight
        {
            get => (double)GetValue(RowHeightProperty);
            set => SetValue(RowHeightProperty, value);
        }

        public ICommand ItemTappedCommand
        {
            get => (ICommand)GetValue(ItemTappedCommandProperty);
            set => SetValue(ItemTappedCommandProperty, value);
        }

        public List<DayInfo> WeekItems
        {
            get => (List<DayInfo>) GetValue(WeekItemsProperty);
            set => SetValue(WeekItemsProperty, value);
        }

        #endregion


        #region Private Fields

        private int _rowCount;

        #endregion


        #region Init

        public ScheduleWeekView()
        {
            InitializeComponent();

            InitializeGrid();
        }

        private void InitializeGrid()
        {
            AddRows(DefaultRowCount);
        }

        #endregion


        #region Events

        private void PinchToZoomContainer_OnPinchUpdated(object sender,
            PinchGestureUpdatedEventArgs e)
        {
            /*if (e.Status == GestureStatus.Started)
            {
                _startScale = ItemHeight;
            }

            if (e.Status == GestureStatus.Running)
            {
                _currentScale = e.Scale * _startScale;

                ItemHeight = Math.Max(InitializeItemHeight, _startScale);
            }*/
        }

        #endregion


        #region Private Methods

        private void FillGrid(List<DayInfo> days)
        {
            if (ReferenceEquals(days, null))
                return;

            for (int i = 0; i <= 6; i++)
            {
                FillColumn(days[i], i);
            }
        }

        private void FillColumn(DayInfo day, int column)
        {
            if (ReferenceEquals(day.Items, null))
                return;

            var itemsCount = day.Items.Count;

            var rowToAdd = _rowCount - itemsCount;
            if (rowToAdd < 0)
                AddRows(rowToAdd);

            for (int i = 0; i < itemsCount; i++)
            {
                var template = CreateJobView(day.Items[i]);
                PasteItem(template, column, i + 1);
            }
        }

        private JobObjectTemplate CreateJobView(JobObject jo)
        {
            var template = new JobObjectTemplate
            {
                BindingContext = jo,
            };

            Binding itemTappedCommandBinding =
                new Binding("ItemTappedCommand", source: this);

            template.SetBinding(JobObjectTemplate.ItemTappedCommandProperty,
                itemTappedCommandBinding);
            return template;
        }

        private void PasteItem(View view, int column, int row)
        {
            ScheduleGrid.Children.Add(view, column, row);
        }

        private void AddRows(int count)
        {
            for (int i = 0; i < count; i++)
            {
                var row = CreateRowDefenition();
                ScheduleGrid.RowDefinitions.Add(row);
            }

            _rowCount += count;
        }

        private RowDefinition CreateRowDefenition()
        {
            var row = new RowDefinition();

            Binding heightBinding = new Binding("RowHeight", source: this);

            row.SetBinding(RowDefinition.HeightProperty, heightBinding);

            return row;
        }

        #endregion
    }
